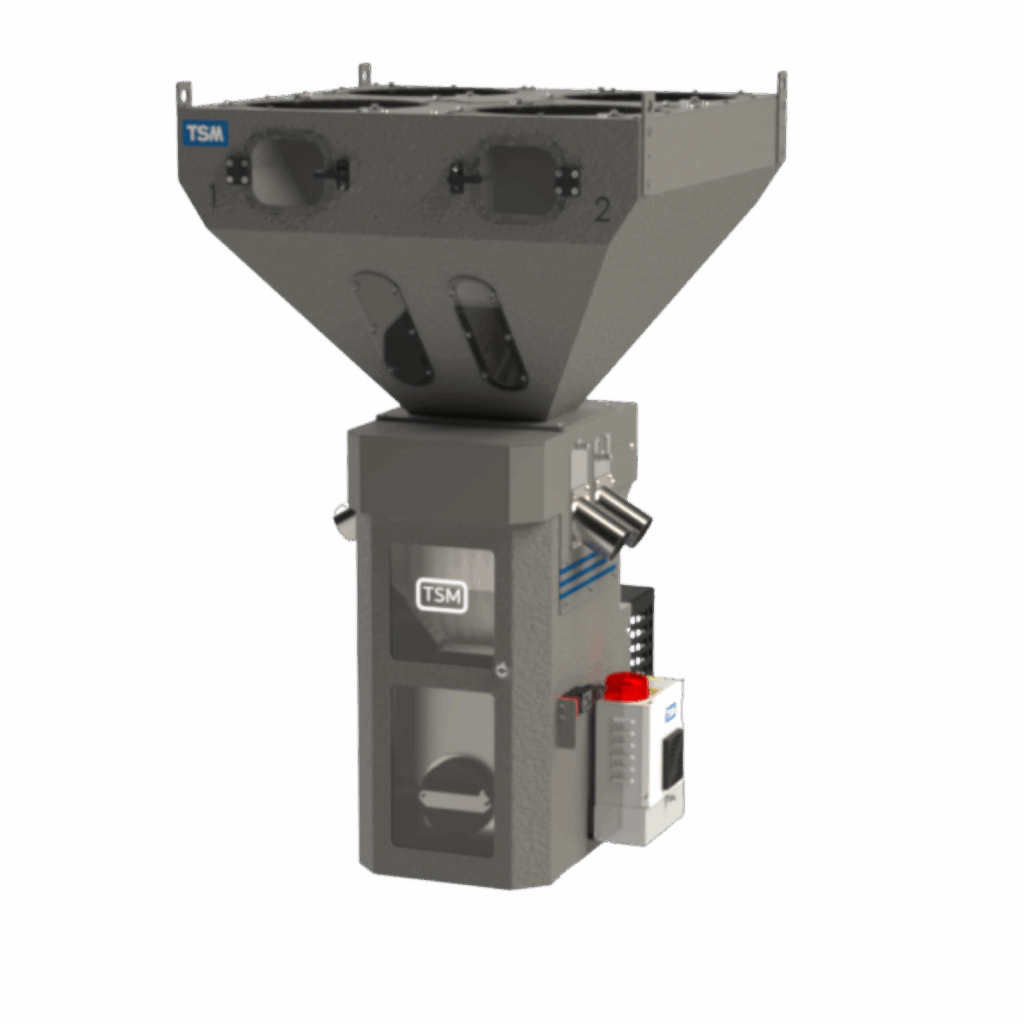

Opti-X LIW Gravimetric Batch Blending

TSM’s Opti-X Gravimetric Batch Blender Loss-in-Weight technology, has been designed exclusively for extrusion control. All the fundamental capabilities are enhanced in this new range and packaged in a sleek, robust, user-friendly design. But most importantly, essential business metrics relating to material usage, energy usage, downtime analysis and OEE (Operational Equipment Efficiency) are available across single or multiple lines and factories.



Download Brochure


OPTI-X range of Extrusion Control applications represent TSM’s next generation blending technology, providing superior accuracies, blend ratios and mixing homogeneity not achievable  by competitive systems. OPTI-X blenders utilize TSM slide valve design and patented reverse flight auger mixing technology combined with continuous Loss-in-Weight measurement.

TSM’s extrusion control blenders combine in a unique way, accurate gravimetric batch blending with integrated extrusion control using Loss-in-Weight techniques. This results in exceptional, ultra fast through-put measurement and control of the extrusion process. OPTI-X range can accommodate up to twelve components at throughputs up to 1300kg (2900 lbs) / hour).

  • Fast, Accurate Control Response

  • High Accuracy Dispensing up to 0.01% of Batch

  • Fast Throughput Measurement

  • Instantaneous Response to Process Disturbances

  • Superior Weighing & Mixing

  • Accuracy up to +/- 0.5% of target setpoint

  • Easily removable access panels designed to conceal & protect critical cables and wiring

  • Uniquely designed optional material level sensor’s allowing adjustable sensor positioning on any hopper compartment

  • Quick cleaning easy drain chutes allowing for complete emptying of the hopper bin when changing materials, available on all hopper compartments.

  • Simple connect flexible tubing to the drain and open the manual slide to allow material to exit the hopper compartment

  • Hidden panel designed to hold a small & compact user’s manual

  • Large blender access door with generous viewing window

  • Heavy duty optional extruder adaptor neck with material drain chute

  • Stainless steel LIW homogenous material mixing chamber

  • Independently suspended mixing chamber on a hinged base creates an ideal barrier against accidental damage of the LIW load cell. The unique design allows higher resolution measurement of material flow to extruder

Opti-Mix Characteristics
Opti-X 100
Opti-X 200
Opti-X 400
Opti-X 800
Reservoir Hopper Volume (L/Compartment)  15 15 23 32
Standard No. Material Components 4 6 6 6
Optional Additional Material Components 2 2 2 2
Std Batch Weight Capacity (kg)/lbs 1/2.2 3/6.6 5/11 9/19.8

TSM Patented Mixing Technology
