Thickness Profile Measurement System (GPA EVO II)
High-Precision Offline Thickness Profile Measurement for Blown and Cast Film
High-Precision Offline Thickness Profile Measurement for Blown and Cast Film

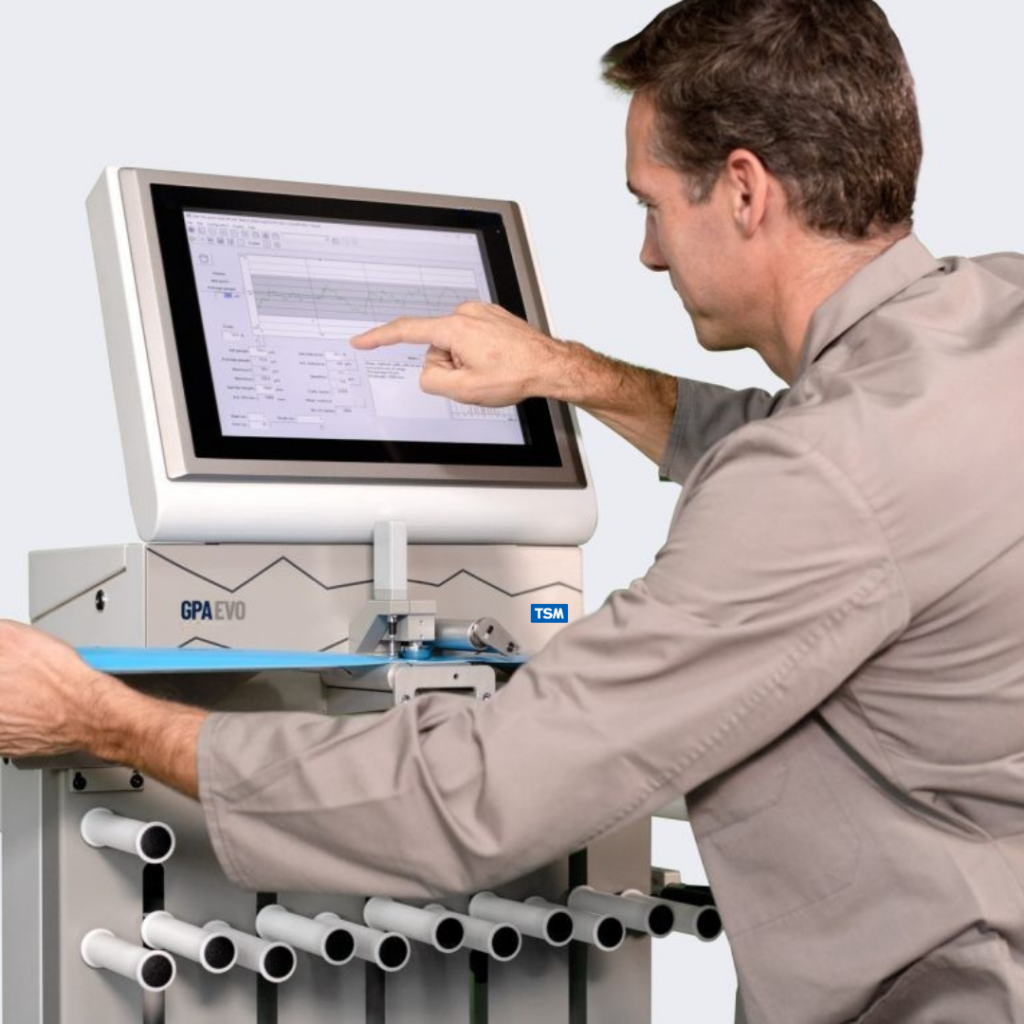

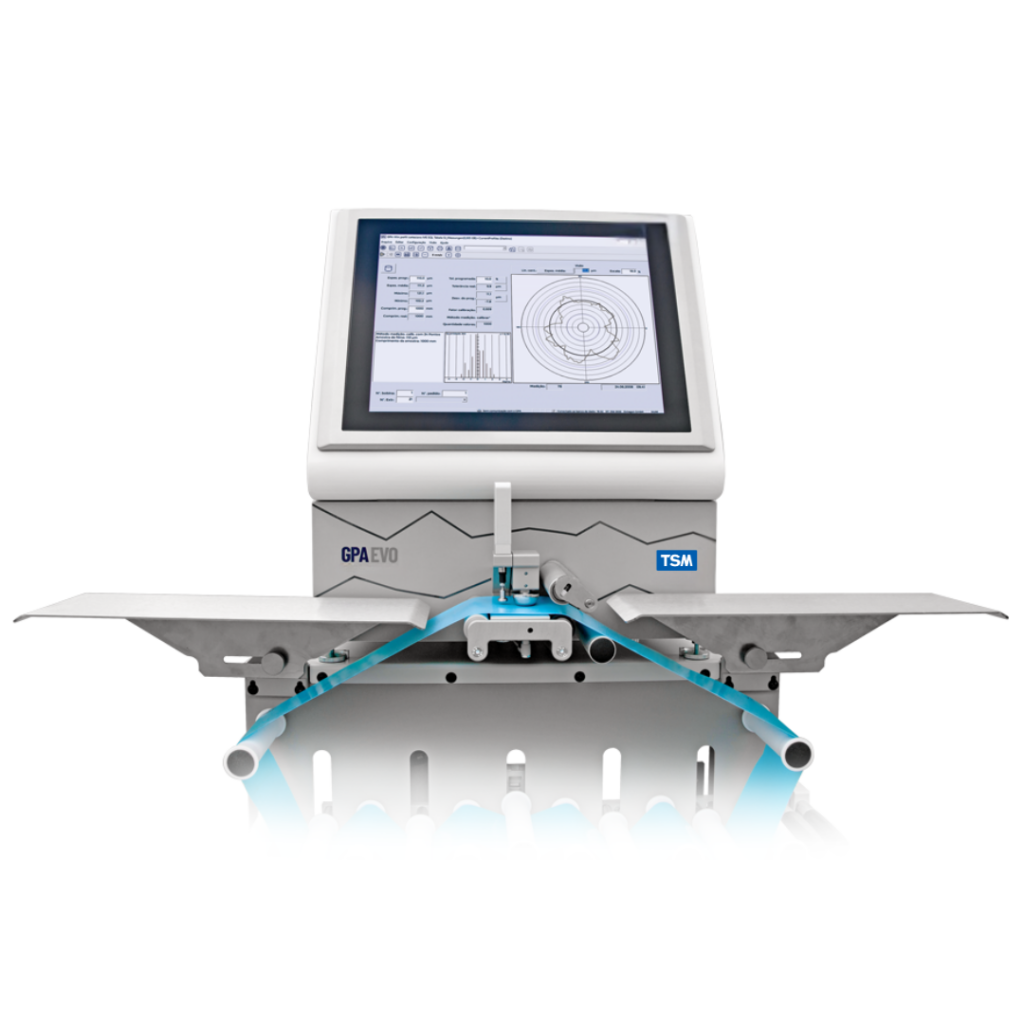

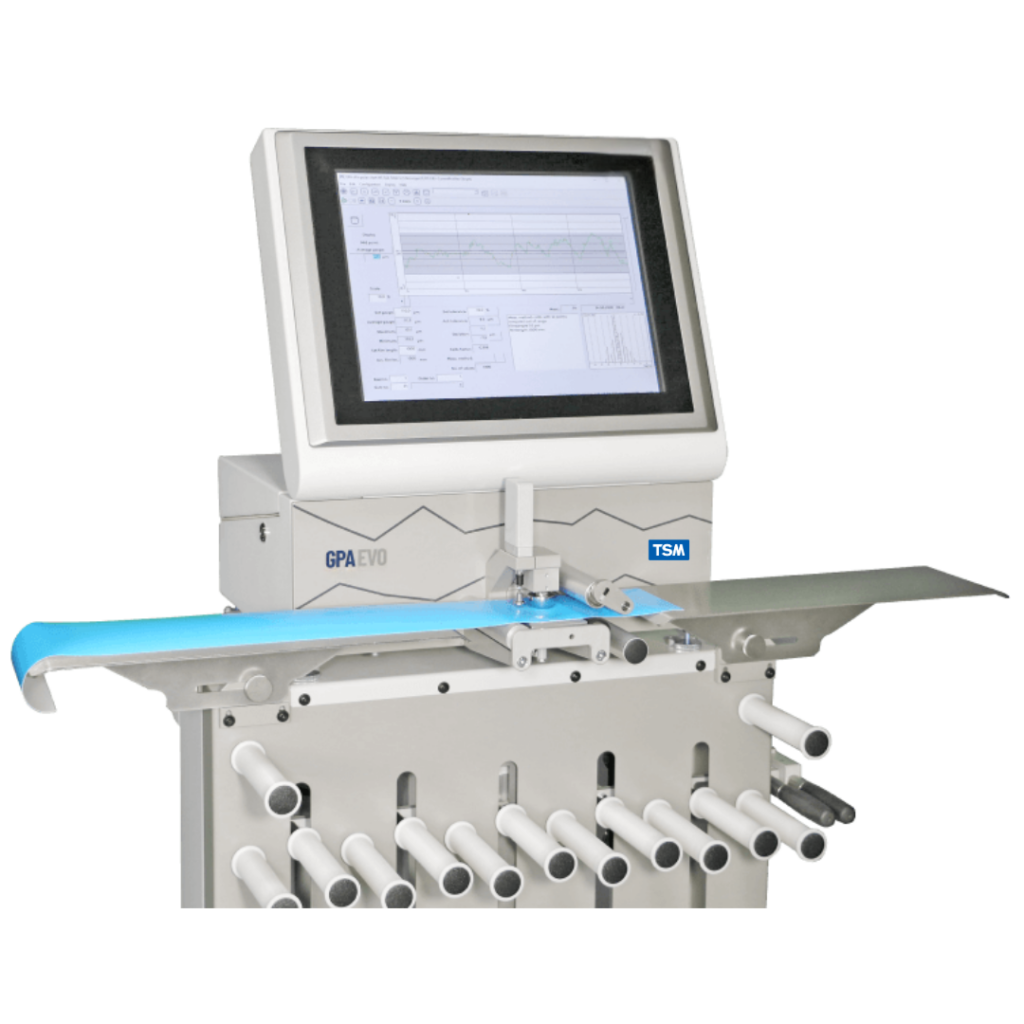

The TSM Thickness Profile Measurement System (GPA EVO II) is a high-precision offline film gauge measurement solution developed for blown and cast film manufacturers who require accurate thickness verification and detailed profile analysis.
Designed for laboratory, quality assurance, and process validation environments, the system utilizes advanced non-contact capacitive and micrometer sensor technology to deliver micron-level measurement accuracy across the full film profile. Integrated GPA-Win software provides intuitive operation, automatic calibration, and comprehensive data reporting to support consistent product quality and continuous process optimization.
As part of the TSM Blown Film Control Platform, the GPA EVO II provides independent thickness verification, enabling manufacturers to validate production performance, support compliance requirements, and maintain strict gauge tolerances.
Measurement Type: Offline thickness profile measurement for blown and cast film applications
Measurement Accuracy: ±0.2 μm for precise and repeatable gauge validation
Sensor Resolution: 0.05 μm for detailed thickness profile analysis
Calibration System: Automatic zero reset to ensure consistent baseline accuracy

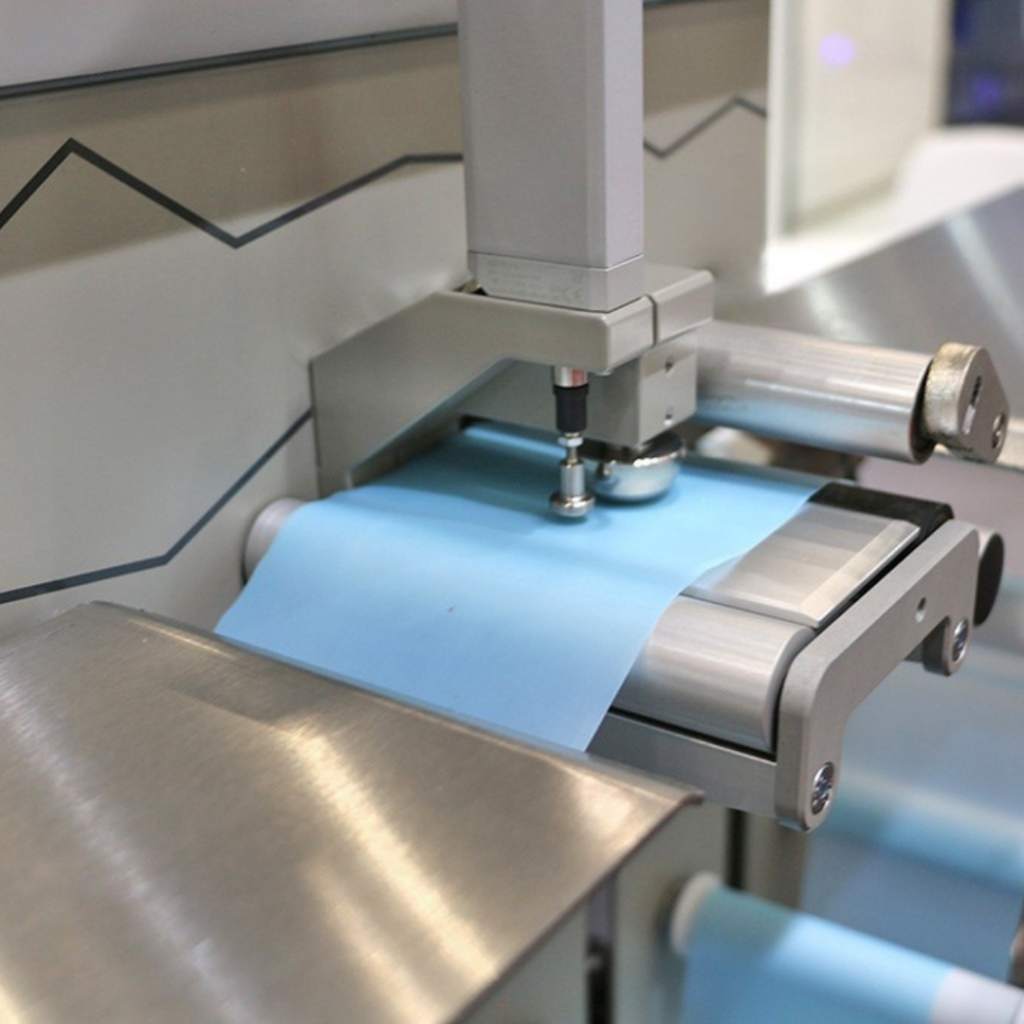

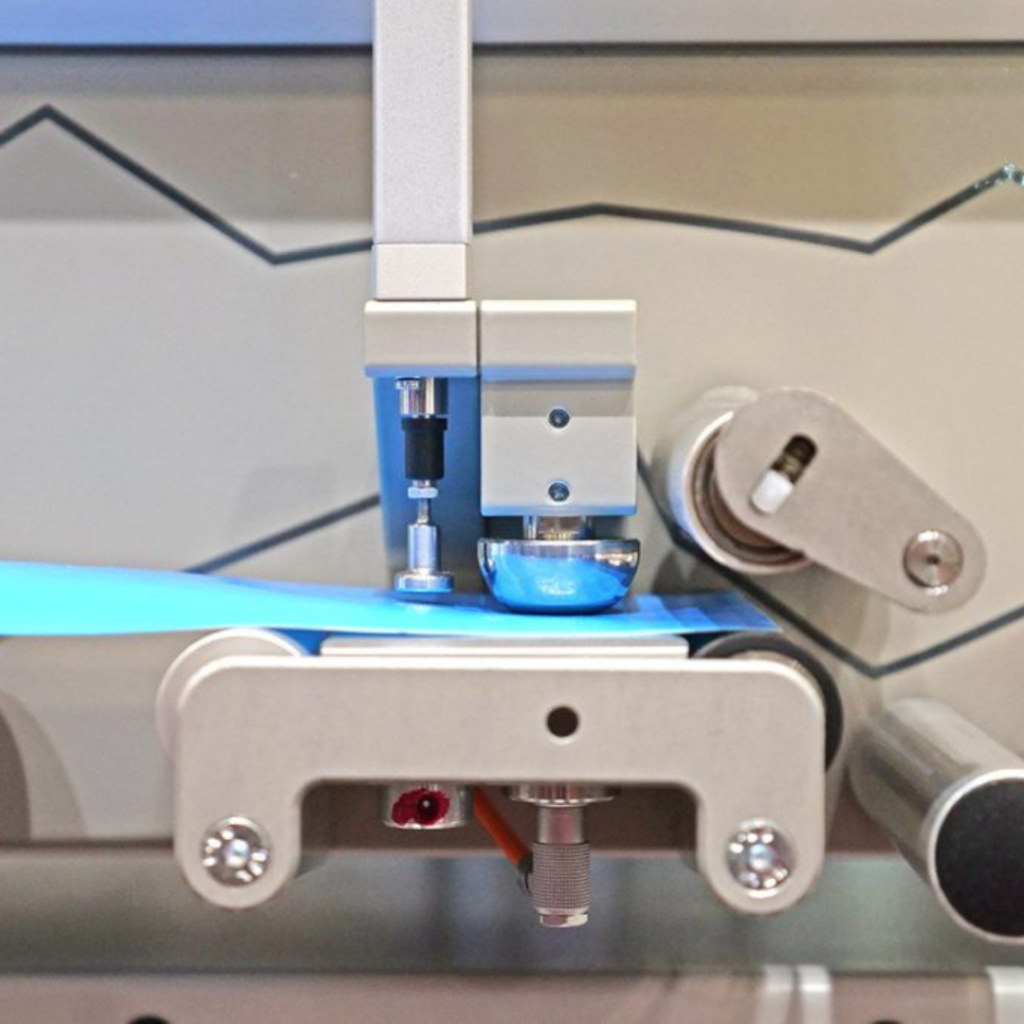

Sensor Technology: Non-contact capacitive and micrometer sensors for reliable, low-wear operation

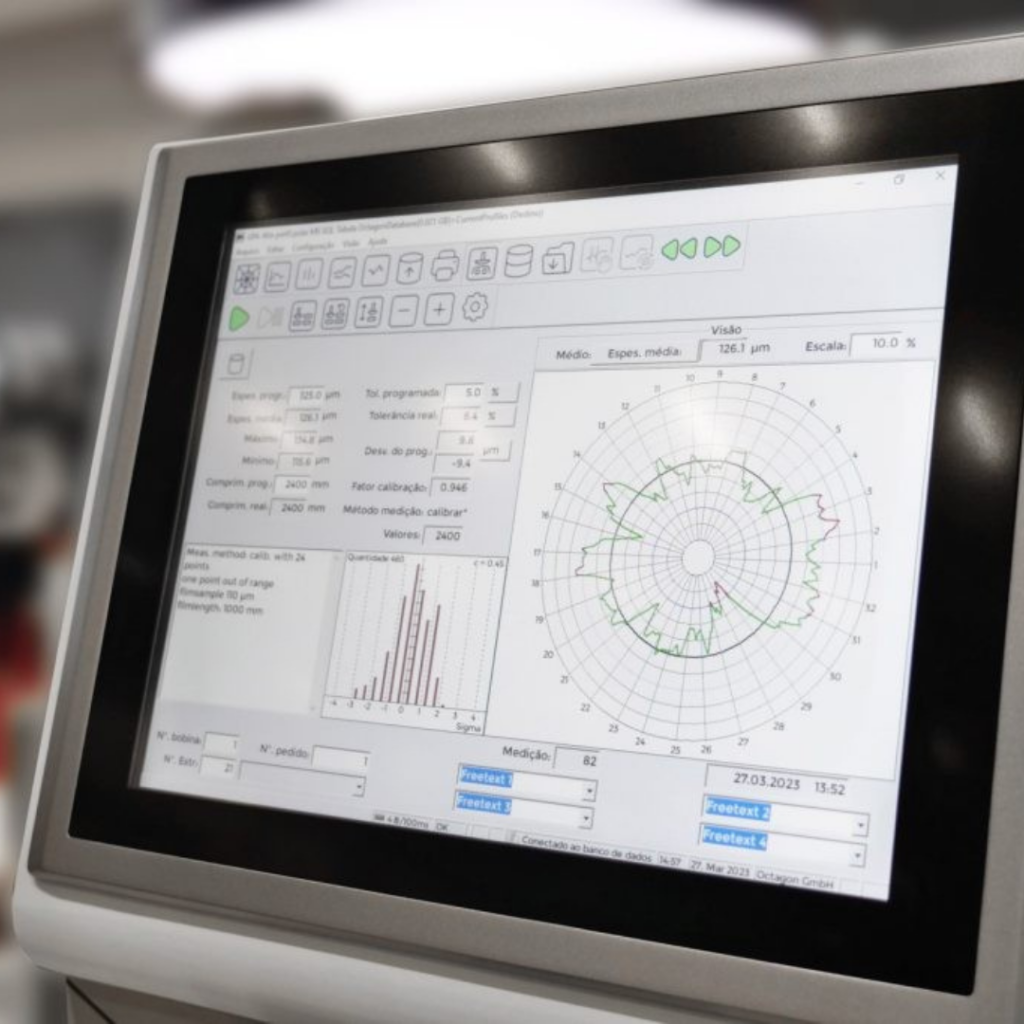

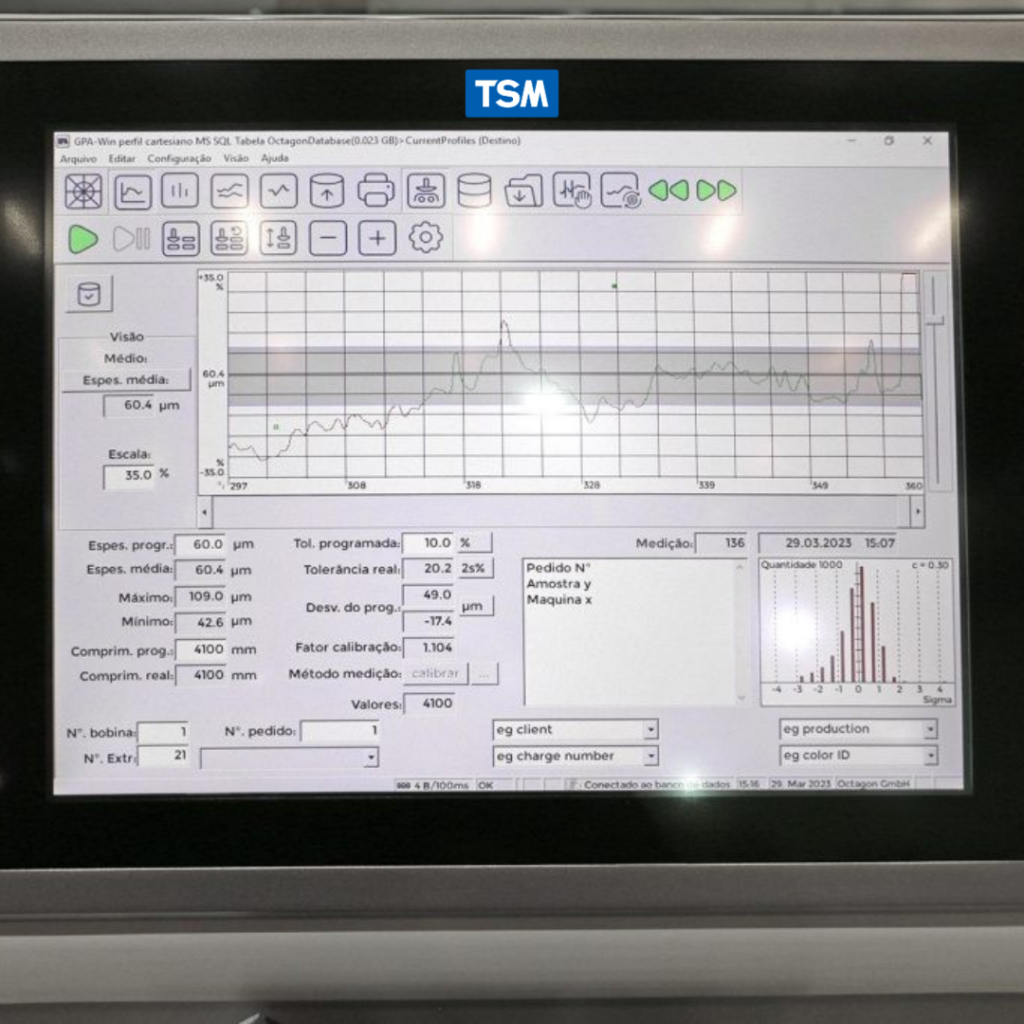

Software Interface: Integrated GPA-Win system with profile visualisation and reporting tools
Measurement Flexibility: Suitable for varying film lengths and production requirements

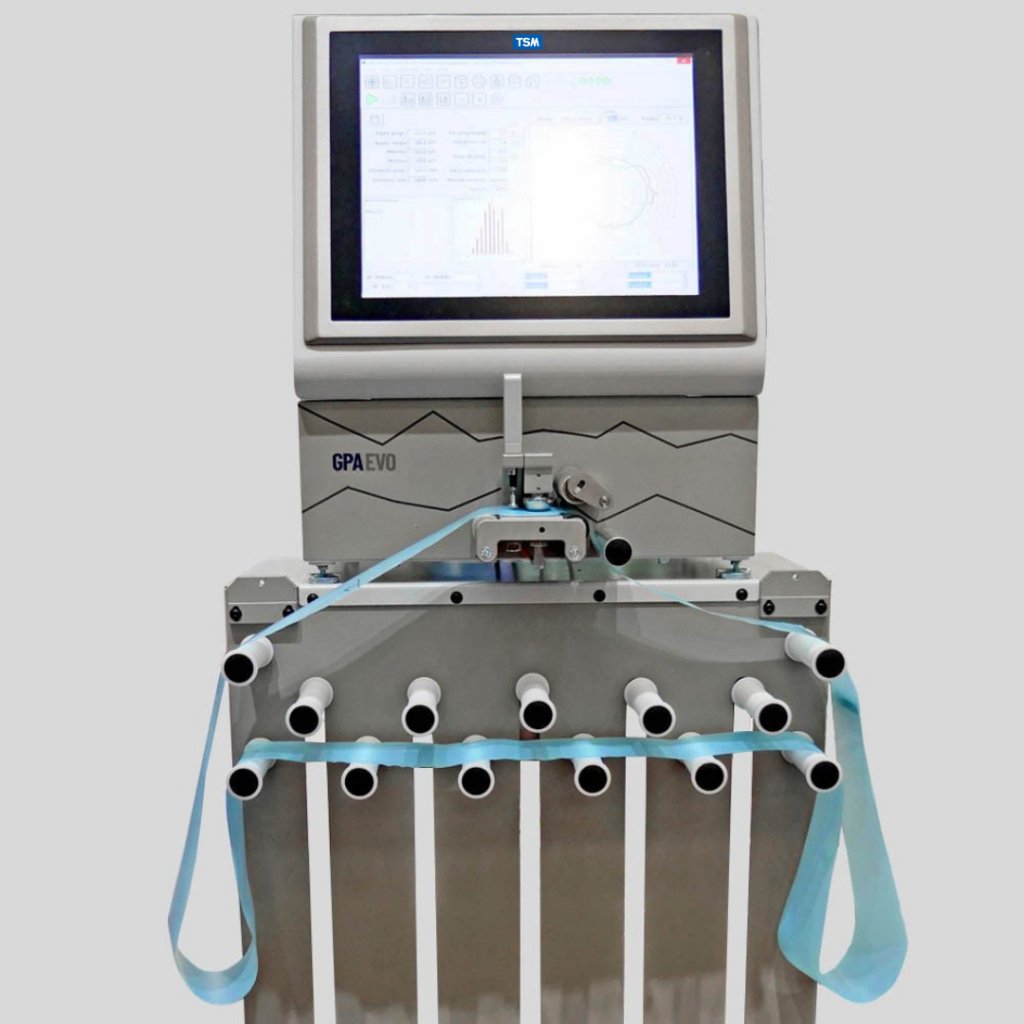

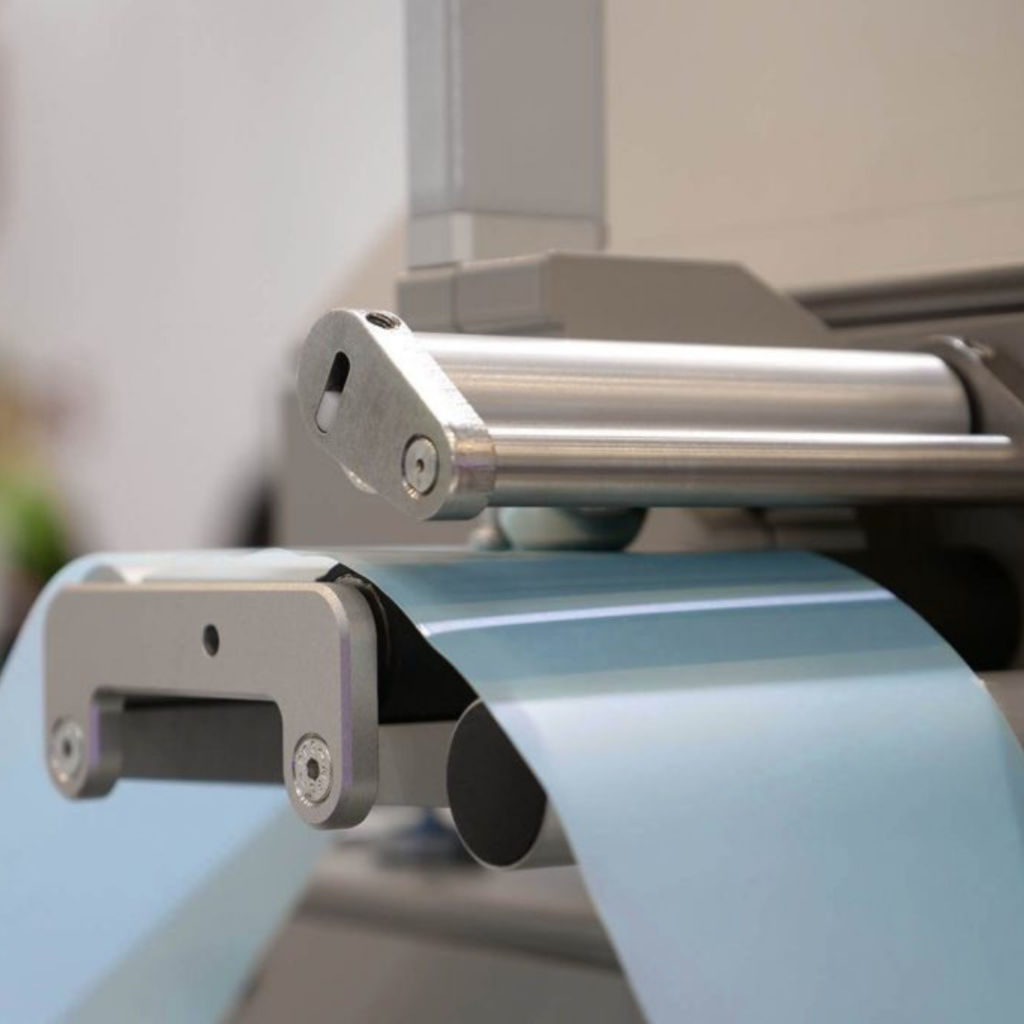

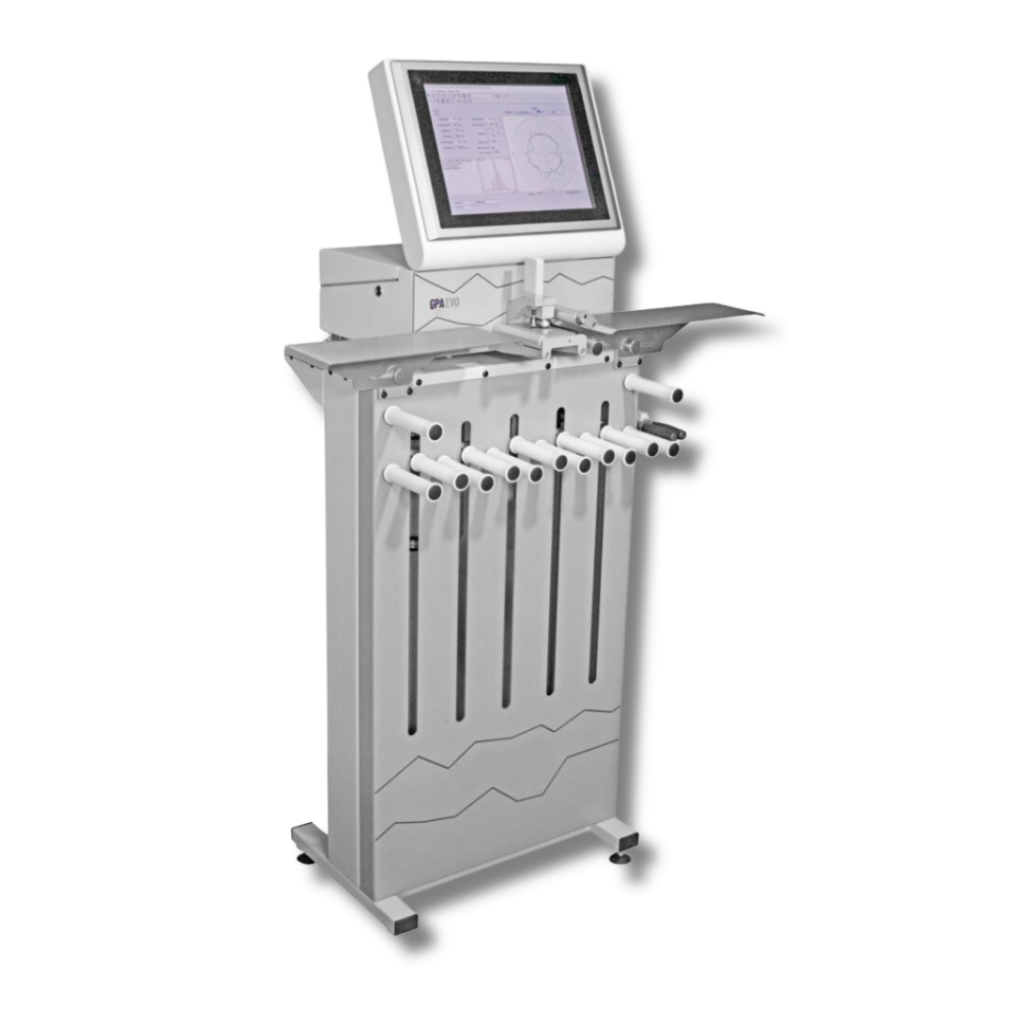

Film Handling System: Support rack with rollers for stable and controlled sample movement
Connectivity: LAN interface for PC integration and structured data management
Compliance: Designed to support ISO and DIN quality assurance standards
Film Sample Width: 100 mm
Maximum Sample Length: 19.99 m
Measuring Speed: 15–80 mm/s
Measuring Range: 0–300 μm
Sensor Resolution: 0.05 μm
Measuring Accuracy: ±0.2 μm
Pressure Force: 0.3–0.5 N
Interface: 1 x LAN (PC)
